Easy Realist Viewer

I'm always discouraged watching the long-winding films.
Yes, I'm lazy. it is a hardwork to cut, separate and mount photos.
Therefore, I came up with a simple device
that can observe stereo photos in realist format without cutting films.

The images on the film are rotated 180 degrees through lens.
First, turn the film over.

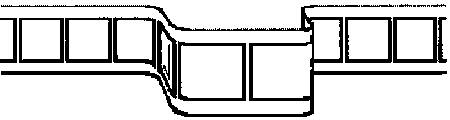

Then bend the film so that the pair be face to face.

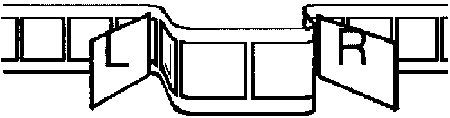

Finally, reflect the left and right photos in the mirror.

transparent prototype
cross view

parallel view

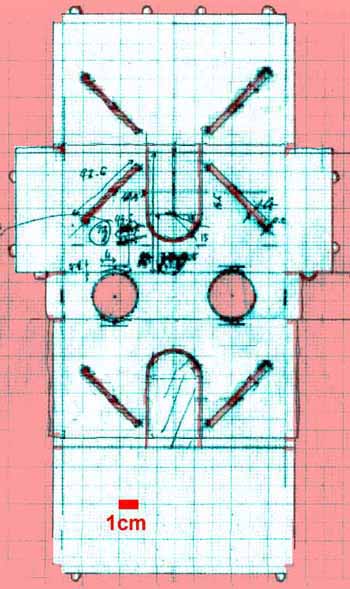

expansion drawing

The idea was published in The Journal of Three Dimensional Images, Vol.26, No.2, 2012 Jul. (in Japanese)
But, unfortunately (actually, due to my procrastination), productin had came to a deadlock.
Is there anyone who has the same idea, and had already made something like this? If there is, please let me know, to

, I'm happy if I can get your mail.
